High-Speed 1500 caps/hour Automatic Plastic Cap Assembly Machine with Stainless Steel Construction and Touch Screen Interface

  • 1
  • 2

Supply Ability : 20SETS

Detection System : Photoelectric Sensor

Delivery Time : 30 WORK DAYS

Main Power : Servo motor

Input Voltage : 220V 50Hz

Certification : CE

Automatic Grade : Automatic

Price : 10000-20000USD

Packaging Details : WOODEN BOX

Production Speed : 1500 caps/hour

Packing details : export standerd wooden case

Payment Terms : T/T

Operating Interface : Touch Screen

Warranty : 1 Year

Place of Origin : FOSHAN

Function : Slitting Knife

MOQ : 1SET

Material : Stainless steel

Brand Name : PINCHI

Application : Cap Assembly Machine

Contact Now

High-Speed Automatic Plastic Cap Assembly Machine Multi-Function Cap Assembling Production Line
Equipment Overview

This high-performance plastic cap assembly machine features a precision enclosed cam indexing station that delivers exceptional accuracy, reliable operation, and extended service life. The intuitive human-machine interface ensures straightforward setup and operation, while PLC control guarantees stable performance with variable frequency control for adjustable production speeds.

  • Automatic counting functionality with no-material-no-operation capability
  • High-precision cam indexing control for accurate positioning
  • Constructed from SUS304 stainless steel, fully compliant with GMP requirements
  • Automatic shutdown features for operational safety

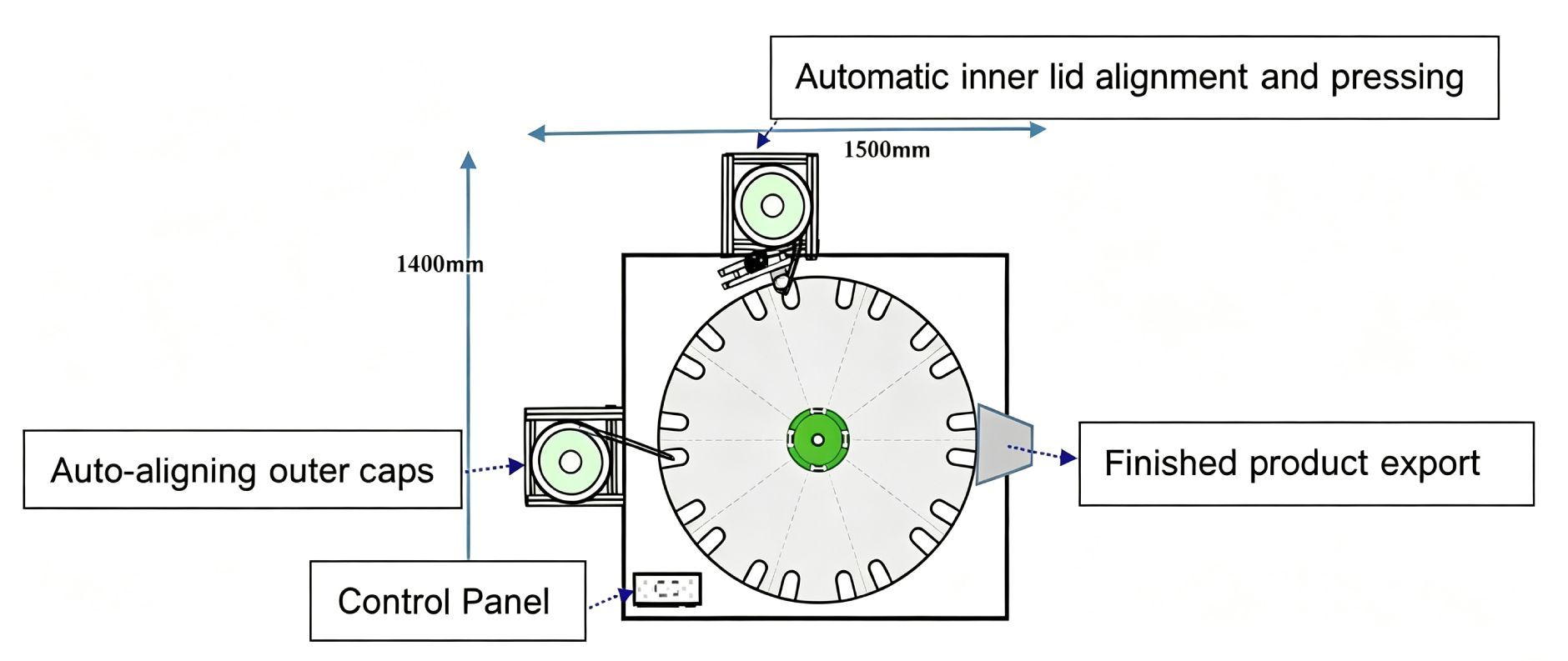

Equipment Layout Diagram
High-Speed 1500 caps/hour Automatic Plastic Cap Assembly Machine with Stainless Steel Construction and Touch Screen Interface
Equipment Specifications
Parameter Specification
Power Supply AC 220V ±10%, 50/60Hz
Air Supply 0.5MPa-0.6MPa
Cap Alignment Method Lift-type cap alignment
Cap Discharge Method Guide rail vibration guidance (PPU servo-driven cap feeding system)
Compatible Caps Custom-made based on provided samples
Production Speed 1500 caps/hour
Total Power Consumption 4kW
Machine Control PLC automated programme control + touchscreen HMI operation
Machine Exterior Fully 304 stainless steel
Overall Dimensions Approx. 1500 × 1400 × 1650 mm
Payment and Trade Terms
Description Details
Product Model High-Speed Automatic Plastic Cap Assembly Machine Multi-Function Cap Assembling Production Line
VAT Status With VAT
Place of Origin Made in China
Price Validation 100 days
Payment Terms T/T, 30% deposit, 70% balance before loading against FAT
Delivery Time 35 days after receipt of advanced payment
Warranty 1 year for complete machine, extended coverage for software & system
Commissioning Free commissioning within 3 days (customer bears local expenses for engineer accommodation and tickets)
After Sales Service and Support

Quality Warranty: Full product quality traceability with 1-year warranty period from equipment acceptance date

Maintenance Services: Free maintenance during warranty period; travel and material costs apply for post-warranty services

Remote Support: Free remote operation and maintenance services via Pinchi Tech AI cloud platform for system updates, algorithm settings, and software adjustments
